Gym Performance Evaluation Device Naprava za oceno vadbene zmogljivosti

Overview Pregled

Compact embedded device for measuring force and motion on gym cable machines. Uses strain-gauge load cell and 6-axis IMU to classify movement phases in real time. Kompaktna vgrajena naprava za merjenje sile in gibanja na fitnes napravah s kabli. Uporablja merilno celico s tenzometrom in 6-osni IMU senzor za razvrščanje faz gibanja v realnem času.

Streams data over BLE to a React Native + TypeScript mobile app for live visualization, automatic phase detection, and training analysis. Pošilja podatke prek BLE v mobilno aplikacijo React Native + TypeScript za vizualizacijo v živo, samodejno prepoznavo faz in analizo vadbe.

Key Features Ključne funkcije

• Wireless real-time BLE data streamingBrezžični BLE prenos podatkov v realnem času
• On-device phase classification using IMU and load cellRazpoznavanje faz gibanja na napravi z uporabo IMU in merilne celice
• High-resolution 24-bit ADC force sensingMerjenje sile z visoko ločljivostjo prek 24-bitnega ADC
• Mobile dashboard for live analytics and exercise reviewMobilna nadzorna plošča za analizo in pregled vadbe
• Configurable profiles and local data loggingNastavljivi profili in lokalno shranjevanje podatkov

Technology Stack Tehnološki sklad

• Microcontroller:Mikrokrmilnik: ESP32-WROOM-32E (FreeRTOS, C++)
• Sensors:Senzorji: 24-bitni ADC, 6-osni IMU
• Mobile App:Mobilna aplikacija: React Native, TypeScript, SQLite
• 3D Design:3D načrtovanje: Onshape
• Manufacturing:Izdelava: Elegoo Saturn 4 Ultra (smola) & Creality Ender 3 (FDM)

Gallery Galerija

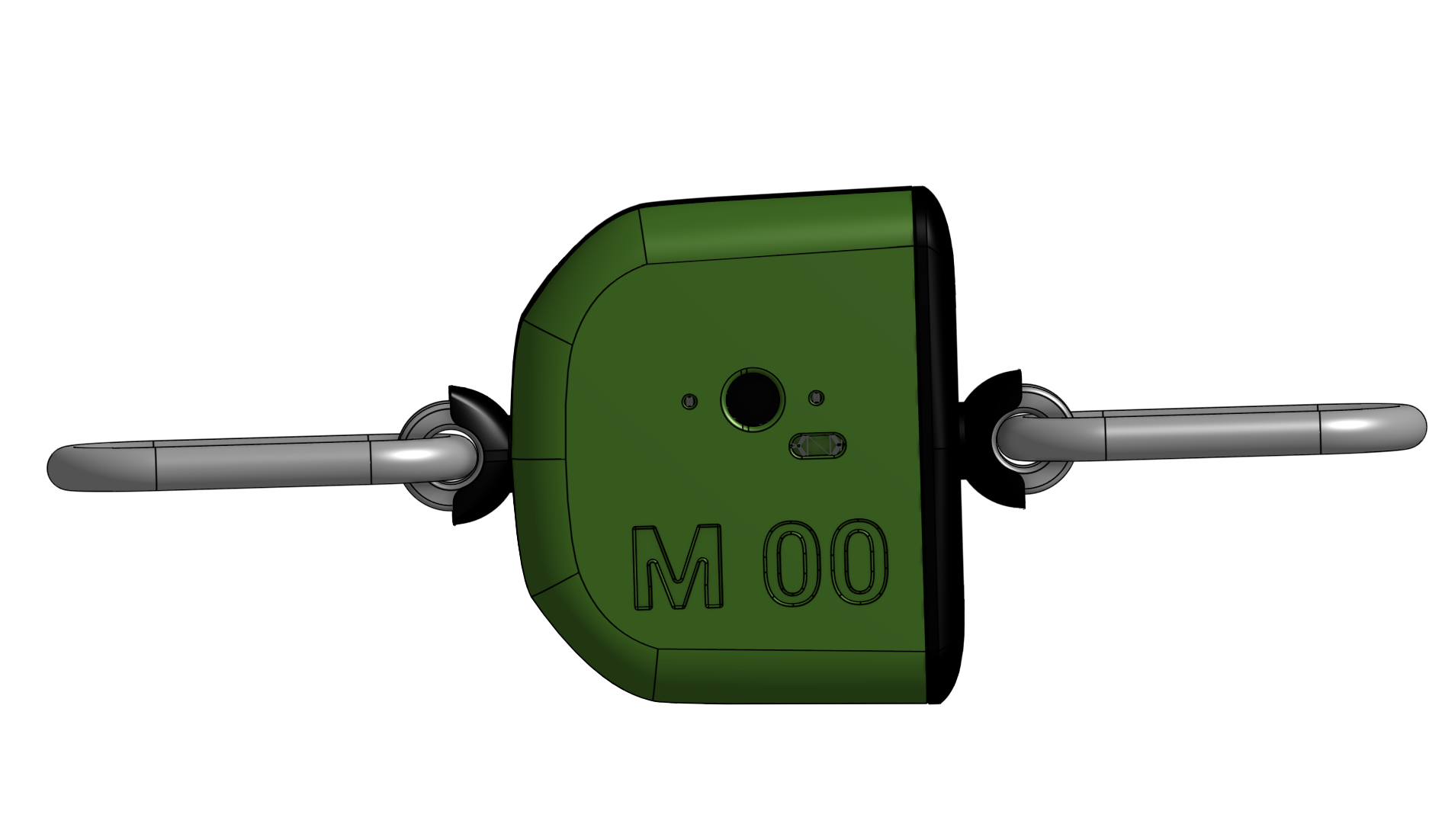

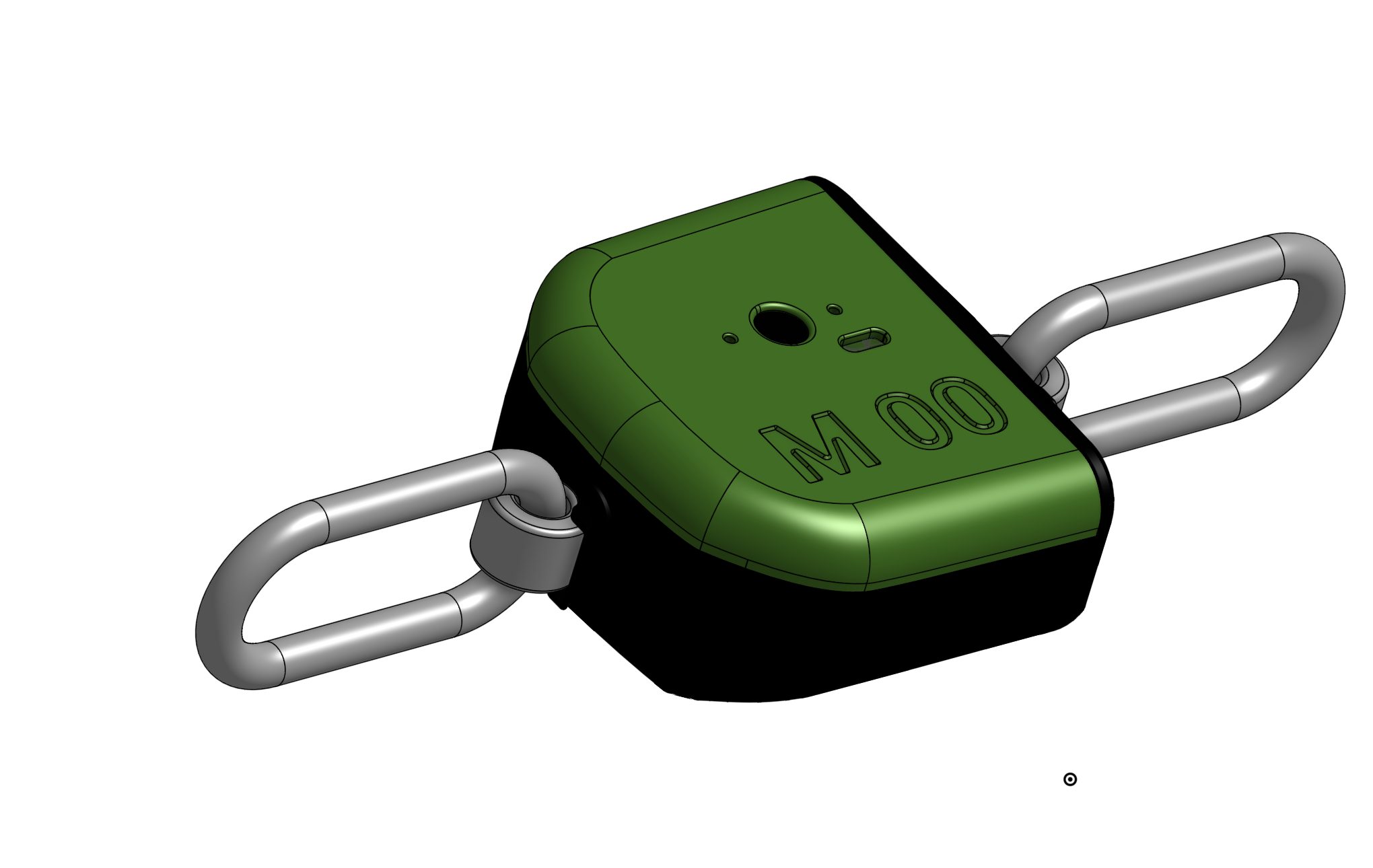

Housing V2 (Current Version) Ohišje V2 (Trenutna različica)

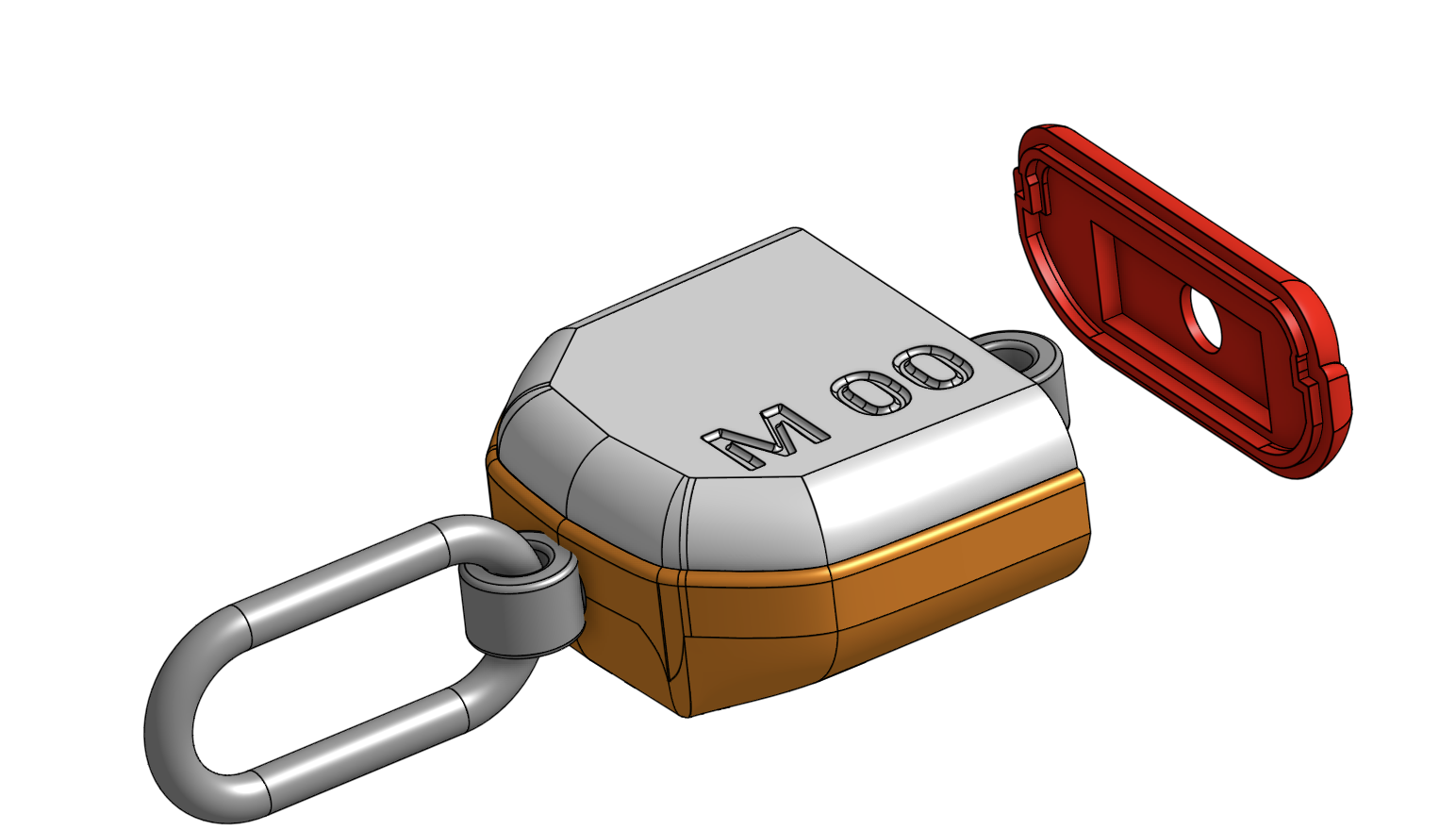

Housing V1 (Initial Prototype) Ohišje V1 (Prvi prototip)

First resin prototype for mechanical validation and sensor calibration. Prvi prototip iz smole, uporabljen za mehansko preverjanje in kalibracijo senzorjev.

PCB Design Načrt tiskanega vezja (PCB)

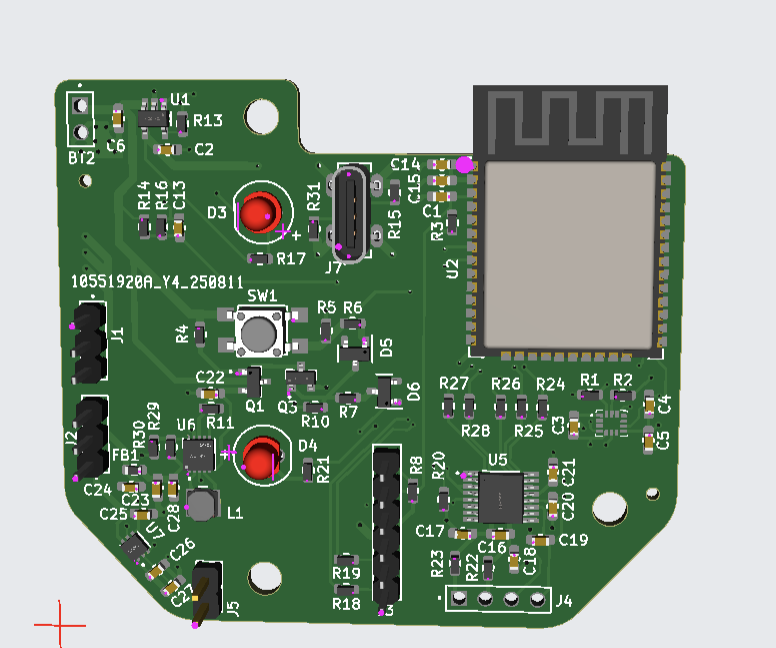

Custom 4-layer PCB for sensor interface and BLE communication. Lastno 4-slojno tiskano vezje za senzorje in BLE komunikacijo.
